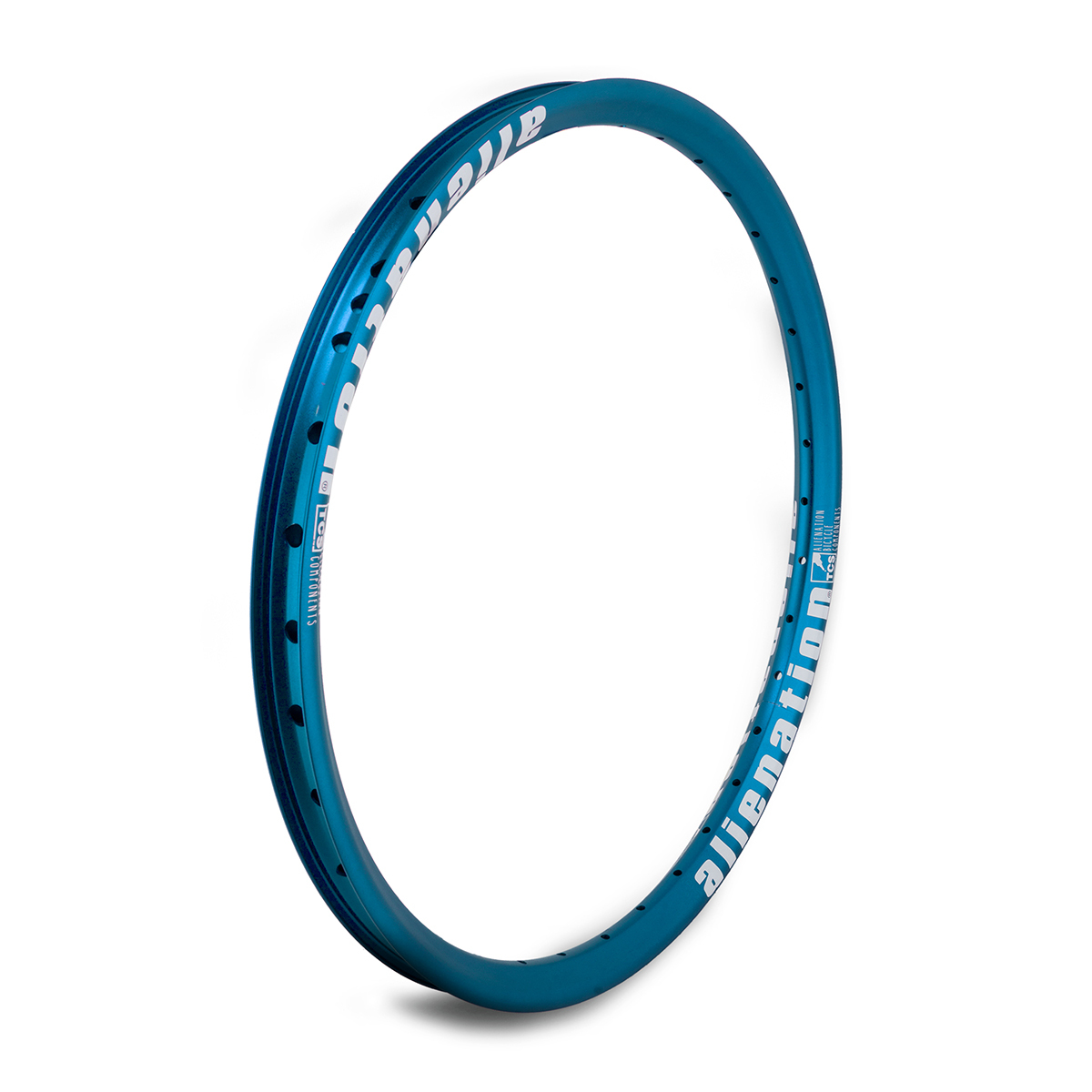

TCS2.0 MISCHIEF

TCS introduces a more robust, easily installed, and dependable tubeless system. A recessed channel along the center of the TCS rim allows installation off the all-new Solid Strip, which prevents tubeless tape from sagging at the spoke holes and results in a smooth, consistent interface between the tire and rim. Installation of the stout Solid Strip allows for more pliable, and easy to install, Flex Tape to provide the airtight seal needed for a tubeless system.

The TCS2.0 (Tubeless Compatible System) Mischief uses our new 4D drilling process less chamfering, of which; creates the optimal interface between spoke and rim. This exact angle reduces binding and the need for eyelets. NO RADIAL LACING. These rims are designed and drilled for 3 cross specifically. Each TCS2.0 Mischief rim comes with a valve plug for the unused valve hole (TCS rims are drilled for both TCS and Schrader).

• Use: Race – Front or Disc Only
• Material: Constructed from 6069-T6 aluminum which is much stronger than 6061 alloy traditionally used in most rims (+30% tensile strength vs 6061-T6).
• Walls: Double
• Joint: Sleeved
• Diameter: 406 (20”)
• Weight: 406 = 305g
• Drilling: 36H
• Valve: TCS & SV
• Sidewall: N/A
• ERD: 406 = 387
• Colors: Blue
