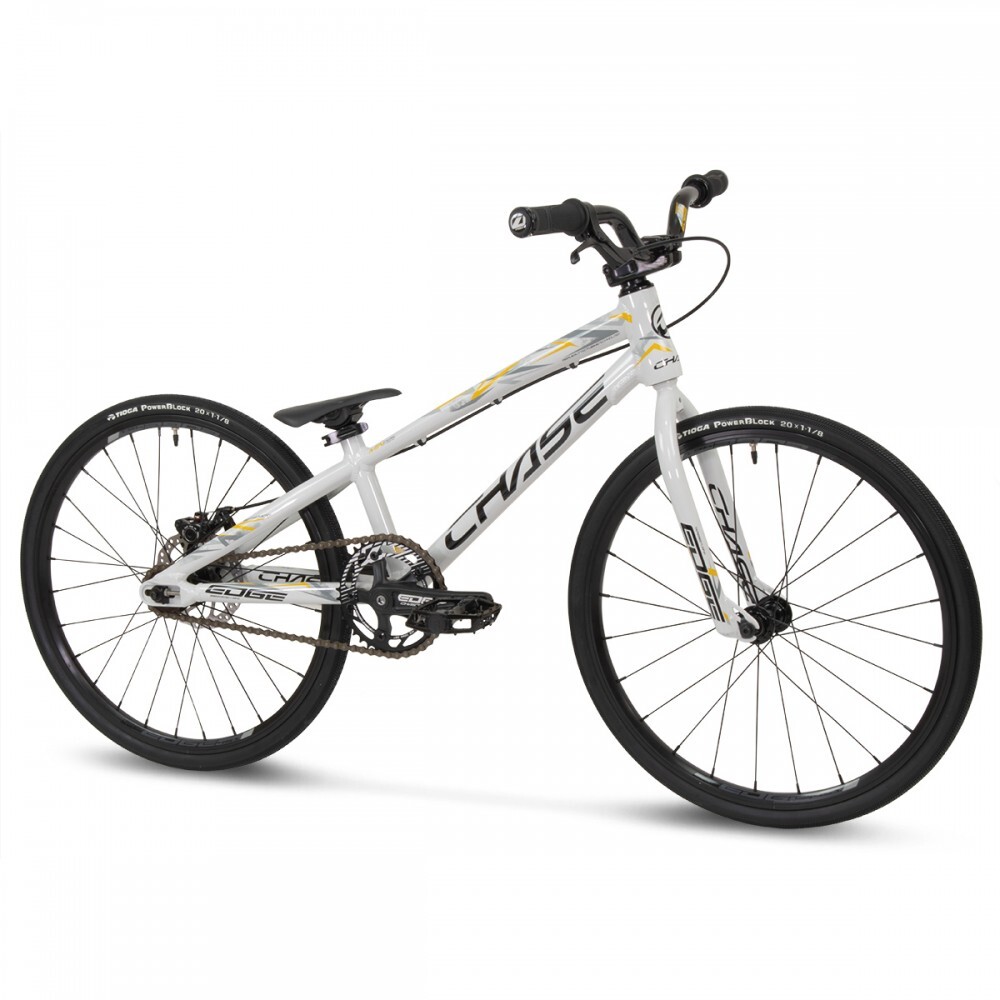

CHASE Edge 2024 Mini 17.25 TT (Cement)

CHASE Edge Mini 17.25 TT (Cement)

The Chase Edge is our most sought after race bike for riders looking to get serious about BMX racing. With our 10 year history in offering complete bikes and our attention to detail, you know you are getting one of the best BMX bikes offered today! We build all our race bikes with our Championship winning geometry frames and then upgrade them with some of the top parts brands in BMX racing, such as Tioga, KMC, Insight and more. The Chase Edge will give you the edge over your competition and get on the way to #winwithChase

The Chase Edge Complete bike features a Disc Specific Race frame with Hydroformed & butted tubing, cable actuated disc brakes, integrated chain tensioner / disc brake mounting system, Tioga tires, Insight Chain Ring, Triple Clutch System cassette hub, KMC Chain, and a Pivotal Seat and Seat Post. With 10 bike sizes offered, the Edge line up gives you a full range of size options for just about any racer.

KEY FEATURES

FRAME: CHASE Edge Mini 17.25″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: CHASE Edge Mini, Full Cr-mo, 1″ Steer Tube
STEM: CHASE Edge 40mm
HANDLEBAR: CHASE Edge 2.25″
HEADSET: Integrated Sealed Bearing
CHAINRING: INSIGHT 38T 5 Bolts BCD 110mm
CRANKSET: CHASE Edge Alloy 140mm, 113mm squared axle BB
HUBS: CHASE Edge Mini 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
RIMS: CHASE Edge 118 Double Wall 20″x1-1/8″, 24H Front and 28H Rear
TIRES: TIOGA PowerBlock 20″x1-1/8″ Front and Rear
BRAKES: Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor
SEAT: INSIGHT Mini Pivotal
WEIGHT: 16.7 LBS / 7,59 KG WITHOUT PEDALS
RIDER SIZE: 3′ 7,3″ – 4′ 1,2″ / 1M10 – 1M25

FRAME	CHASE Edge Mini 17.25″ Top Tube, 6061 T6 Alloy Triple Butted Hydroformed, Integrated Head Tube, Enclosed Rear Dropouts And Chain Tensioner System
FORK	CHASE Edge Mini Full Cr-mo, 1″ Steer Tube With Tapered Blades
HEADSET	Integrated IS 42/42 Reductor 1″, Sealed Bearing
HANDLEBAR	CHASE Edge 22.2mm, 2.25″ Rise, 22.5″ Wide, 8° Back Sweep, 2° Up Sweep
GRIPS	INSIGHT C.O.G.S 115mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	CHASE Edge 40mm 6061 T6 AlloyLaser Etched Logo
BB	Euro Square 113mm Sealed Bearing
CHAINRING	INSIGHT 38 Tooth 5 Bolts 110mm 1/2″x3/32″ 3mm Alloy Ring
CRANK	CHASE Edge 3 Piece Crank 140mm Alloy Arm, Cr-Mo Chainring Bolts
PEDAL	Platform 9/16″
CHAIN	KMC Z1 narrow 1/2″x3/32″
COG	16 Tooth
FRONT HUB	CHASE Edge Mini, 3/8″ Axle, M6 bolts, 24H, Sealed Bearing
REAR HUB	CHASE Edge Mini ISO 28H, Sealed Bearing, 10mm Axle, M6 Bolts, Steel Cassette Body With 3 Pawls At Triple Angle Engagement For 24T Ratchets
SPOKES	Front 208mm, Rear 198/199mm, 14 Gauge, Steel
NIPPLES	16mm, 14 Gauge, Brass
FRONT RIM	CHASE Edge 118 Double Wall 24H 20″x1-1/8″ Presta Valve
FRONT TIRE	TIOGA PowerBlock 20″X1-1/8″ Wire Bead
REAR TIRE	TIOGA PowerBlock 20″X1-1/8″ Wire Bead
TUBES	20″x1-1/8″ Presta Valve
BRAKES	Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor
SADDLE	Insight Mini Pivotal Nylon Plastic Body With Cr-Mo Bolt
SEAT POST	Pivotal 25.4x110mm Alloy
SEAT CLAMP	Chase Edge QR Alloy 28.6mm

FRAME SIZE	TT	CS min	LR	AF	SA	HT	SPL	BBH	WB	WHEELS
Micro	16.25" 412.75mm	10.85" 275.6mm	1.8" 46mm	71°	69°	4" 100mm	8" 203.5mm	10.25" 254mm	28.81" 732mm	18×1"
Mini	17.25" 438.15mm	12.25" 312mm	1.8" 46mm	72°	70°	4.33" 110mm	8.8" 225mm	10.6" 269.2mm	31.49" 800mm	20×1-1/8"
Junior	18.75" 476.25mm	12.5" 317.5mm	1.8" 46mm	73°	72°	4.33" 110mm	8.8" 225mm	10.6" 269.2mm	33.85" 859.9mm	20×1-1/8"
Expert	19.75" 501.65mm	13" 330.2mm	1.8" 46mm	73°	72°	4.33" 110mm	8.8" 225mm	11" 279.4mm	34.79" 883.8mm	20×1-3/8"
Expert XL	20" 508mm	13.5" 353mm	1.8" 46mm	73°	72°	4.7" 120mm	8.8" 225mm	11.5" 279.4mm	35.55" 903mm	20×1.50"
Pro	20.5" 520.7mm	14" 355.6mm	1.8" 46mm	74°	72°	4.7" 120mm	9.3" 238mm	11" 279.4mm	36.9" 938mm	20×1.75"
Pro XL	21" 533.4mm	14.15" 359.4mm	1.8" 46mm	74°	72°	4.7" 120mm	9.3" 238mm	11.5" 292.1mm	37.21" 945.2mm	20×1.75"
Pro XXL	21.5" 546.1mm	14.15" 359.4mm	1.8" 46mm	74°	72°	4.7" 120mm	9.3" 238mm	11.5" 292.1mm	38.16" 969.5mm	20×1.75"
Pro Cruiser	21.5" 546.1mm	14.5" 368.3mm	1.8" 46mm	74°	71°	4.7" 120mm	9.3" 238mm	10.6" 270mm	37.97" 964.5mm	24×1.75"

With All complete bikes, we recommend having a professional Bicycle dealer complete your initial build up as well as doing a 1 month break in adjustment to check all specs and adjust the bike as needed for optimal riding performance. All bikes will need some adjustment out of the box and this is the responsibility of the final owner to make these adjustments.
