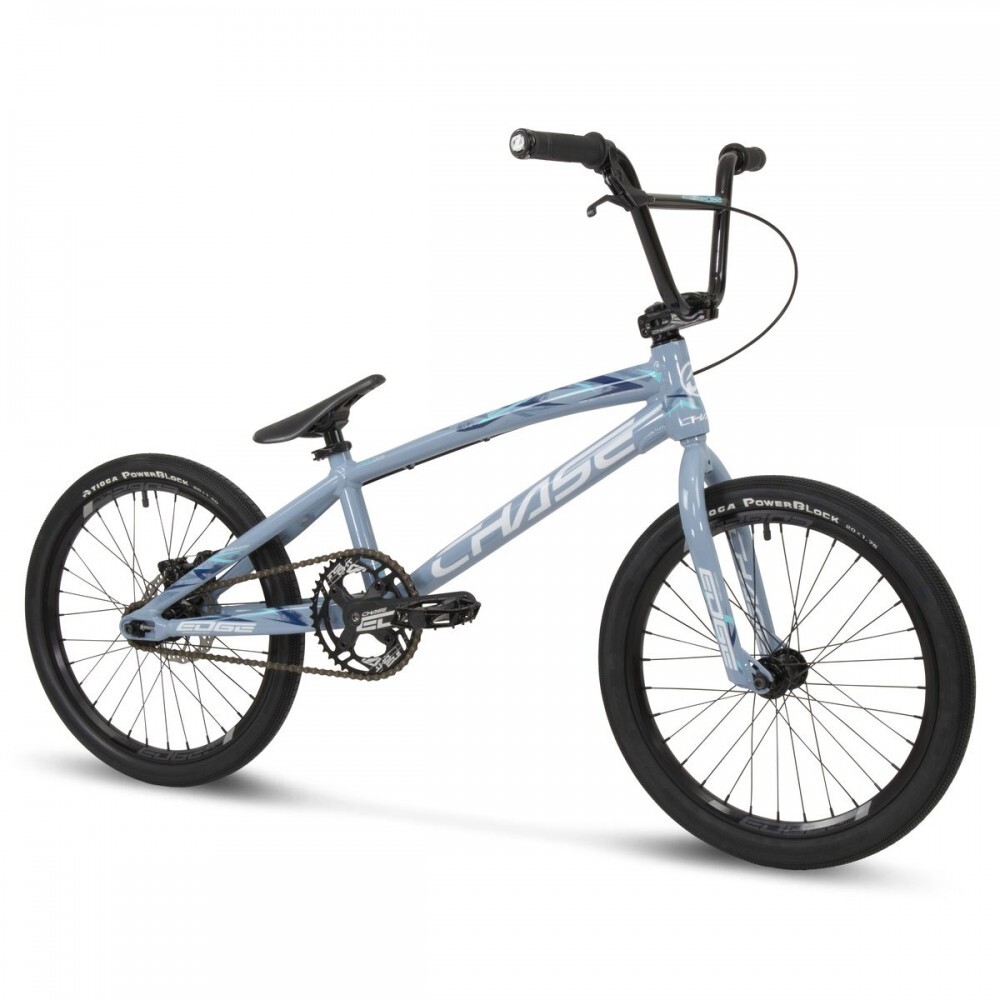

CHASE Edge Pro 20.50 TT (Cement)
The Chase Edge is our most sought after race bike for riders looking to get serious about BMX racing. With our 10 year history in offering complete bikes and our attention to detail, you know you are getting one of the best BMX bikes offered today! We build all our race bikes with our Championship winning geometry frames and then upgrade them with some of the top parts brands in BMX racing, such as Tioga, KMC, Insight and more. The Chase Edge will give you the edge over your competition and get on the way to #winwithChase
The Chase Edge Complete bike features a Disc Specific Race frame with Hydroformed & butted tubing, cable actuated disc brakes, integrated chain tensioner / disc brake mounting system, Tioga tires, Insight Chain Ring, Triple Clutch System cassette hub, KMC Chain, and a Pivotal Seat and Seat Post. With 10 bike sizes offered, the Edge line up gives you a full range of size options for just about any racer.
KEY FEATURES
- FRAME: CHASE Edge Pro 20.5″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
- FORK: CHASE Edge Pro, Full Cr-mo, 1-1/8″ Steer Tube
- STEM: CHASE Edge 50mm
- HANDLEBAR: CHASE Edge 7.5″
- HEADSET: Integrated Sealed Bearing
- CHAINRING: INSIGHT 43T 4 Bolts BCD 104mm
- CRANKSET: CHASE Edge Alloy 175mm, 118mm ISIS axle BB
- HUBS: CHASE Edge Pro 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
- RIMS: CHASE Edge 150 Double Wall 20″x1.50″, 32H Front and Rear
- TIRES: TIOGA PowerBand 20″x1.85″ Front and PowerBlock 20″x1.60″ Rear
- BRAKES: Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor
- SEAT: CHASE Edge Pro Pivotal
- WEIGHT: 20.6 LBS / 9,37 KG WITHOUT PEDALS
- RIDER SIZE: 4′ 11,8″ – 5′ 5,4″ / 1M52 – 1M66
FRAME | CHASE Edge Pro 20.5″ Top Tube, 6061 T6 Alloy Triple Butted Hydroformed, Integrated Head Tube, Enclosed Rear Dropouts And Chain Tensioner System |
FORK | CHASE Edge Pro Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades |
HEADSET | Integrated IS 42/42 1-1/8″, Sealed Bearing |
HANDLEBAR | CHASE Edge 22.2mm, 7.5″ Rise, 27″ Wide, 11° Back Sweep, 3.5° Up Sweep |
GRIPS | INSIGHT C.O.G.S 130mm Alloy Clamps Laser Etched Logo, PVC End Plug |
STEM | CHASE Edge 50mm 6061 T6 Alloy Laser Etched Logo |
BB | 118mm Euro, ISIS, Sealed Cartridge |
CHAINRING | INSIGHT 43 Tooth 4 Bolts 104mm 1/2″x3/32″ 5mm Alloy Ring |
CRANK | CHASE Edge 3 Piece Crank 175mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts |
PEDAL | Pro Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
CHAIN | KMC Z1 narrow 1/2″x3/32″ |
COG | 16 Tooth |
FRONT HUB | CHASE Edge Pro, 3/8″ Axle, 32H, Sealed Bearing |
REAR HUB | CHASE Edge Pro ISO, 3/8″ Axle, 32H, Sealed Bearing, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
SPOKES | Front 179mm, Rear 173/174mm, 14 Gauge, Steel |
NIPPLES | 16mm, 14 Gauge, Brass |
FRONT RIM | CHASE Edge 150 Double Wall 32H 20″x1.50″ Schrader Valve |
REAR RIM | CHASE Edge 150 Double Wall 32H 20″x1.50″ Schrader Valve |
FRONT TIRE | TIOGA PowerBand 20″x1.85″ Wire Bead |
REAR TIRE | TIOGA PowerBlock 20″x1.60″ Wire Bead |
TUBES | 20″x1.50″-1.75″ Schrader Valve |
BRAKES | Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor |
SADDLE | CHASE Edge Pro Pivotal |
SEAT POST | Pivotal 27.2x250mm Alloy |
SEAT CLAMP | CHASE Edge QR Alloy 31.8mm |
FRAME SIZE | TT | CS min | LR | AF | SA | HT | SPL | BBH | WB | WHEELS |
---|---|---|---|---|---|---|---|---|---|---|
Micro | 16.25" 412.75mm |
10.85" 275.6mm |
1.8" 46mm |
71° | 69° | 4" 100mm |
8" 203.5mm |
10.25" 254mm |
28.81" 732mm |
18×1" |
Mini | 17.25" 438.15mm |
12.25" 312mm |
1.8" 46mm |
72° | 70° | 4.33" 110mm |
8.8" 225mm |
10.6" 269.2mm |
31.49" 800mm |
20×1-1/8" |
Junior | 18.75" 476.25mm |
12.5" 317.5mm |
1.8" 46mm |
73° | 72° | 4.33" 110mm |
8.8" 225mm |
10.6" 269.2mm |
33.85" 859.9mm |
20×1-1/8" |
Expert | 19.75" 501.65mm |
13" 330.2mm |
1.8" 46mm |
73° | 72° | 4.33" 110mm |
8.8" 225mm |
11" 279.4mm |
34.79" 883.8mm |
20×1-3/8" |
Expert XL | 20" 508mm |
13.5" 353mm |
1.8" 46mm |
73° | 72° | 4.7" 120mm |
8.8" 225mm |
11.5" 279.4mm |
35.55" 903mm |
20×1.50" |
Pro | 20.5" 520.7mm |
14" 355.6mm |
1.8" 46mm |
74° | 72° | 4.7" 120mm |
9.3" 238mm |
11" 279.4mm |
36.9" 938mm |
20×1.75" |
Pro XL | 21" 533.4mm |
14.15" 359.4mm |
1.8" 46mm |
74° | 72° | 4.7" 120mm |
9.3" 238mm |
11.5" 292.1mm |
37.21" 945.2mm |
20×1.75" |
Pro XXL | 21.5" 546.1mm |
14.15" 359.4mm |
1.8" 46mm |
74° | 72° | 4.7" 120mm |
9.3" 238mm |
11.5" 292.1mm |
38.16" 969.5mm |
20×1.75" |
Pro Cruiser | 21.5" 546.1mm |
14.5" 368.3mm |
1.8" 46mm |
74° | 71° | 4.7" 120mm |
9.3" 238mm |
10.6" 270mm |
37.97" 964.5mm |
24×1.75" |
With All complete bikes, we recommend having a professional Bicycle dealer complete your initial build up as well as doing a 1 month break in adjustment to check all specs and adjust the bike as needed for optimal riding performance. All bikes will need some adjustment out of the box and this is the responsibility of the final owner to make these adjustments.
SKU | 65CB240206PROSLT |
Brand | Chase BMX |
Shipping Weight | 12.0000kg |
Shipping Width | 0.200m |
Shipping Height | 1.140m |
Shipping Length | 0.550m |
