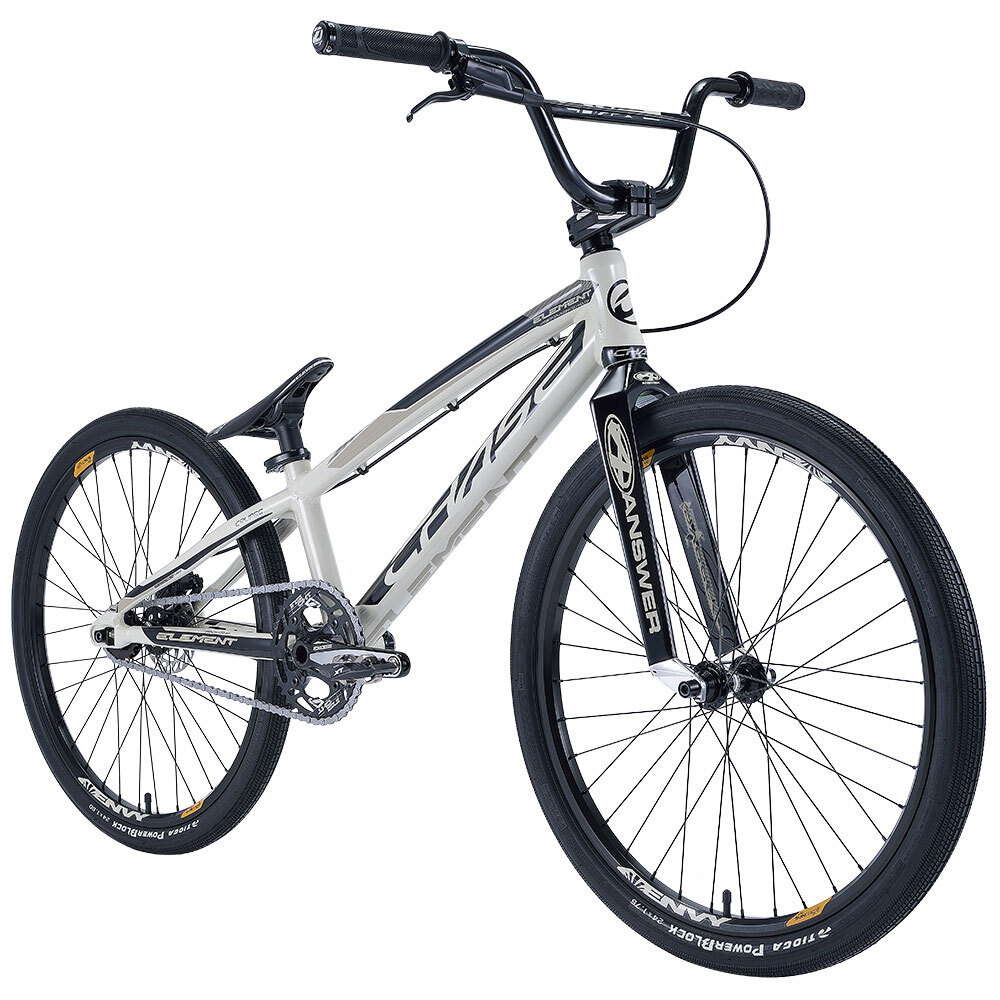

CHASE Element 2023 PRO 24" 21.50 TT Dust

CHASE Element PRO 24" 21.50 TT Dust

The Chase Element complete bike frame uses the same geometry as our Championship winning Chase ACT Carbon Fiber Frame and our and Chase RSP race frames. Our bikes can help you win, if you have what it takes, by giving you an unfair advanced with the technology the Element offers. The 2023 Element frame features Hydroformed & butted tubing, an integrated chain tensioner / disc brake mounting system, and a Press Fit BB86 Bottom Bracket. This is one serious race machine.

The 2023 Element offers incredible features such as Hydroformed Alloy Disc Specific RaceFrame, ANSWER Dagger carbon fiber fork, TIOGA FastR X tires, 31.8mm handlebar & stem, Hydraulic Disc Brakes, Chase Triple Precise clutch cassette hub, SUN RINGLÉ rims, ELEVN Aero Pivotal seat & post, EXCESS LSP crank, BB-86 Press Fit Bottom Bracket, INSIGHT chainring & grips. With all the parts together with this Hi-End frame, we are able to make the ultimate Pro level & best complete race bike out of the box available today for BMX racing!

2023 PRO CRUISER KEY FEATURES

FRAME : CHASE Element Pro Cruiser 21.5″ Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK : ANSWER Dagger Carbon Pro Cruiser 10mm
STEM : CHASE Element 31.8mm 50mm
HANDLEBAR : CHASE Element 31.8mm 5.75″
CHAINRING : INSIGHT 41T 4 Bolts BCD 104mm
CRANKSET : EXCESS LSP 180mm, Press Fit BB86
HUBS : CHASE Element 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 18T cog
RIMS : SUN RINGLÉ Envy Rims 24×1.75″, 36H, No Brake Surface
TIRES : TIOGA Powerblock 24×1.75″ Front & 24×1.60″ Rear
BRAKES : Hydraulic lever and caliper, 120mm disc rotor, Resin pads, Lock Disc Adaptor
SEAT : CHASE Aero seat post & clamp / ELEVN PC Pivotal seat

WEIGHT : 21.7 LBS / 9.85 KG WITH PEDALS

RIDER SIZE : 5′ 6,1″ – 6′ 0,8″ / 1M68 – 1M85

FRAME	CHASE Element Pro Cruiser 21.5″ Top Tube, 7005 T6 Alloy, Integrated 1-1/8″ Head Tube , Enclosed rear dropouts and Chain tensioner system
FORK	ANSWER Dagger Carbon Pro Cruiser, Alloy Drop Out 3/8″ Axle, 1-1/8″ Alloy Steer Tube, Alloy Top Cap
HEADSET	CHASE Integrated Sealed Bearing
HANDLEBAR	CHASE Element 31.8mm, 5.75″ Rise, 28.5″ Wide, 10° Back Sweep, 2° Up Sweep
GRIPS	INSIGHT C.O.G.S 145mm, Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	CHASE Element 31.8mm, 50mm, 6061 T6 Alloy CNC Laser Etched Logo
BB	Press Fit 86/92mm Cartridge Bearings
CHAINRING	INSIGHT 41 Tooth 4 Bolts 104mm 1/2″x3/32″ 5mm Alloy Ring
CRANK	EXCESS LSP 2 Piece Crank 180mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts
PEDAL	Nylon Platform Pedal 9/16″
CHAIN	KMC Z1 narrow 1/2″x3/32″
COG	18 Tooth
FRONT HUB	CHASE Element, 3/8″ Axle, 36H, Sealed Bearing
REAR HUB	CHASE Element ISO, 3/8″ Axle, 36H, Sealed
SPOKES	14 Gauge 236mm Front / 231mm Rear
NIPPLES	Brass 14Gx5/8″
RIMS	SUN RINGLÉ Envy 36H 24×1.75″ No Brake Surface Schrader Valve
FRONT TIRE	TIOGA PowerBlock 24×1.75″
REAR TIRE	TIOGA PowerBlock 24×1.60″
TUBES	24×1.50/1.75″ Schrader valve
BRAKES	Hydraulic lever and caliper (BH-59, Mineral Oil, Pads Resin SHIMANO/ELEVN B01S), 120mm disc rotor, Lock Disc Adaptor
SADDLE	ELEVN PC Pivotal
SEAT POST	CHASE Aero Pivotal 27.2x260mm Alloy
SEAT CLAMP	CHASE Aero 27.2mm QR Alloy

FRAME SIZE	TT	CS min	LR	AF	SA	HT	SPL	BBH	WHEELS
Expert	20" - 508 mm	13.5" - 342.9 mm	1.5" - 38.1 mm	73°	70°	4.7" - 120 mm	9.2" - 236 mm	11" - 279.4 mm	20×1-3/8"
Pro	20.5" - 520.7 mm	14.25" - 362 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	20×1.5"
Pro XL	21" - 533.4 mm	14.3" - 363.3 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	20×1.75"
Pro XXL	21.5" - 546.1 mm	14.5" - 368.3 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	20×1.75"
Pro XXXL	22.0" - 558.8 mm	14.5" - 368.3 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	20×1.75"
Pro Cruiser	21.5" - 546.1 mm	15.25" - 387.3 mm	1.5" - 38.1 mm	73°	69,5°	4.7" - 120 mm	9.8" - 250 mm	12" - 304.8 mm	24×1.75"
Pro Cruiser +	22.0" - 558.8 mm	15.25" - 387.3 mm	1.5" - 38.1 mm	73°	69,5°	4.7" - 120 mm	9.8" - 250 mm	12" - 304.8 mm	24×1.75"
