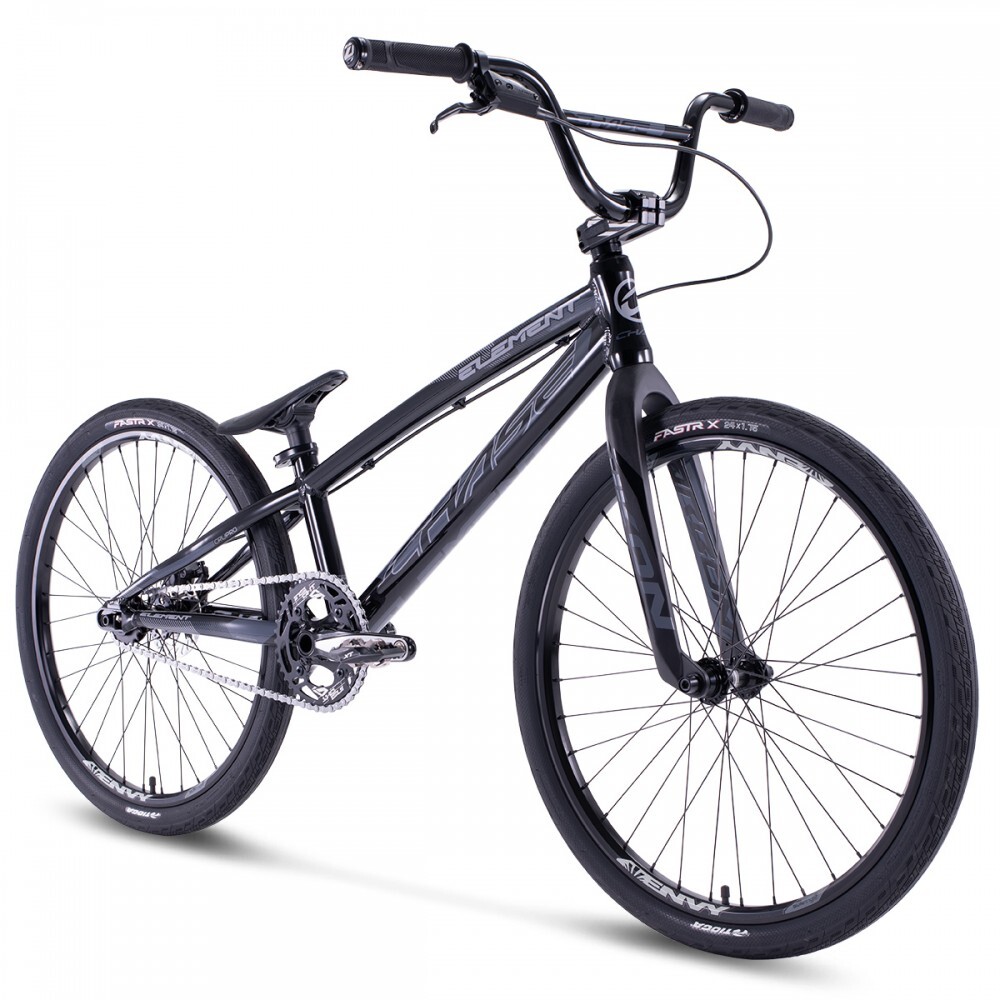

CHASE ELEMENT PRO-CRUISER

Chase has been pushing the envelope for the past 11 years with our complete bikes and the newest edition of the Element, Element 10 is the best we have ever offered.

FRAME: Chase Element Pro Cruiser 21.5e Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8", 20mm Drop Out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 50mm
HANDLEBAR: Chase Element 31.8mm 5.75"
CHAINRING: Insight 41T 4 Bolts BCD 104mm
CRANKSET: Excess LSP 180mm, Press Fit BB86
HUBS: Chase Element 3/8" Bolts, 36H Front, Chase Element 3/8" Cassette ISO Hub 36H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 18T cog
RIMS: Sun Ringlé Envy Rims 24×1.75", 36H, No Brake Surface
TIRES: Tioga Fastr X 24×1.75" Front & Rear
BRAKES: Tektro Hydraulic lever and caliper (Resin Pads), 120mm disc rotor, Lock Disc Adaptor
SEAT: Chase Aero seat post & clamp / Elevn PC Pivotal seat
PEDALS - Nylon Platform - Pictured with Shimano XT Pedals but this was for photo purposes only.

WEIGHT: 21.7 LBS / 9.85 KG WITH PEDALS
RIDER SIZE: 5′ 6,1″ – 6′ 0,8″ / 1M68 – 1M85

The Element 10 foundation is the new frame- an updated Disc brake specific 7005 T6 frame. The Element frame is built using the ultimate in Alloy Technology - Double & Tripple Butted tubing and Hydroformed & Tapered tubing. Frame features include an integrated chain tensioner / disc brake mounting system, Disc brake specific design, and a Press Fit BB86 Bottom Bracket. The Element frame uses the same geometry as our UCI World Champion and USA BMX Championship winning Chase ACT Carbon Fiber Frame and RSP race frames, all featuring the Aero Shaped seat tube.

The Element frame is built up with some of the best parts in BMX, including- IKON Pro Carbon 20mm Fork, Sun Envy Alloy Rims, Tioga Fastr Tires, KMC Chain, Disc ISO Rear Cassette hub with 72 points of engagement, 31.8 Handlebars & Stem, Excess LSP Cranks, Insight Chainring, Grips, and Hydraulic brakes.

#WinWithChase has been a guide whenever we design a new bike or frame, giving riders the best to help them win. We feel the new Element is an unfair advantage with the technology, race history, and experience we have built into it! All thats left is for you to get on the gate!

SPECIFICATIONS :

FRAME	Chase Element Pro Cruiser 21.5" Top Tube 7005 T6 Alloy, Integrated Head Tube, 1-1/8", Close Drop Out
FORK	Ikon Pro 24" Carbon, Alloy 1-1/8" Steer Tube, 20mm Drop Out with Adaptor 3/8" Axle, Alloy Top Cap
HEADSET	Integrated IS 42/42 1-1/8", Sealed Bearing
HANDLEBAR	Chase Element Cromo 5.75", Diameter 31.8mm Rise, 28.5" Wide, 10° Back Sweep & 2° Up Sweep
GRIPS	Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	Chase Element 1-1/8" Steer Tube, Diameter 31.8mmmm, Length 50mm 6061 T6 Alloy CNC Laser Etched Logo
BB	Press Fit 68/73mm Cartridge Bearings
CHAINRING	Insight 41 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring
CRANK	Excess LSP 2 Piece Crank 180mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts
PEDAL	Nylon Platform Pedal 9/16"
CHAIN	KMC Z1 Narrow 1/2"x3/32"
COG	18 Tooth
FRONT HUB	Chase Element 3/8" Bolts, 36H, Sealed Bearing
REAR HUB	Chase Element Pro ISO Hub, 36H, Sealed Bearing, 3/8" Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES	Front 236mm, Rear 231mm, 14 Gauge, Steel
NIPPLES	Brass 14Gx5/8"
RIMS	Sun Rims Alloy Envy Front 36H 24"x1.75" No Brake Surface Schrader Valve
FRONT TIRE	Tioga Fastr X 24"x1.75" 60 TPI Wire Bead
REAR TIRE	Tioga Fastr X 24"x1.75" 60 TPI Wire Bead
TUBES	24"x1.5"-1.75" Schrader Valve
BRAKES	Tektro HD-M280 Hydraulic, Resin Pads, 120mm Rotor, Lock Disc Adaptor
SADDLE	Elevn PC Pivotal
SEAT POST	Chase Aero Pivotal 27.2x260mm Alloy
SEAT CLAMP	Chase Aero 27.2mm QR Alloy
CHAIN TENSIONER	Integrated Built-In With New Lock Disc Adaptor

GEOMETRIES :

FRAME SIZE	TT	CS min	LR	AF	SA	HT	SPL	BBH	WHEELS
Expert	20" - 508 mm	13.5" - 342.9 mm	1.5" - 38.1 mm	73°	70°	4.7" - 120 mm	9.2" - 236 mm	11" - 279.4 mm	20×1-3/8"
Pro	20.5" - 520.7 mm	14.25" - 362 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	20×1.5"
Pro XL	21" - 533.4 mm	14.3" - 363.3 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	20×1.75"
Pro XXL	21.5" - 546.1 mm	14.5" - 368.3 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	20×1.75"
Pro XXXL	22.0" - 558.8 mm	14.5" - 368.3 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	20×1.75"
Pro Cruiser	21.5" - 546.1 mm	15.25" - 387.3 mm	1.5" - 38.1 mm	73°	69,5°	4.7" - 120 mm	9.8" - 250 mm	12" - 304.8 mm	24×1.75"
Pro Cruiser +	22.0" - 558.8 mm	15.25" - 387.3 mm	1.5" - 38.1 mm	73°	69,5°	4.7" - 120 mm	9.8" - 250 mm	12" - 304.8 mm	24×1.75"

NOTE: Chase Element Pictured with Shimano XT Pedals but are for photo purposes only. Bikes come with Nylon Platform Pedals.

IMPORTANT NOTE: The washers supplied with the EXCESS crank set must be fitted between the pedal and the crank. No after-sales service will be accepted if the washers have not been fitted as of the 1st use.
