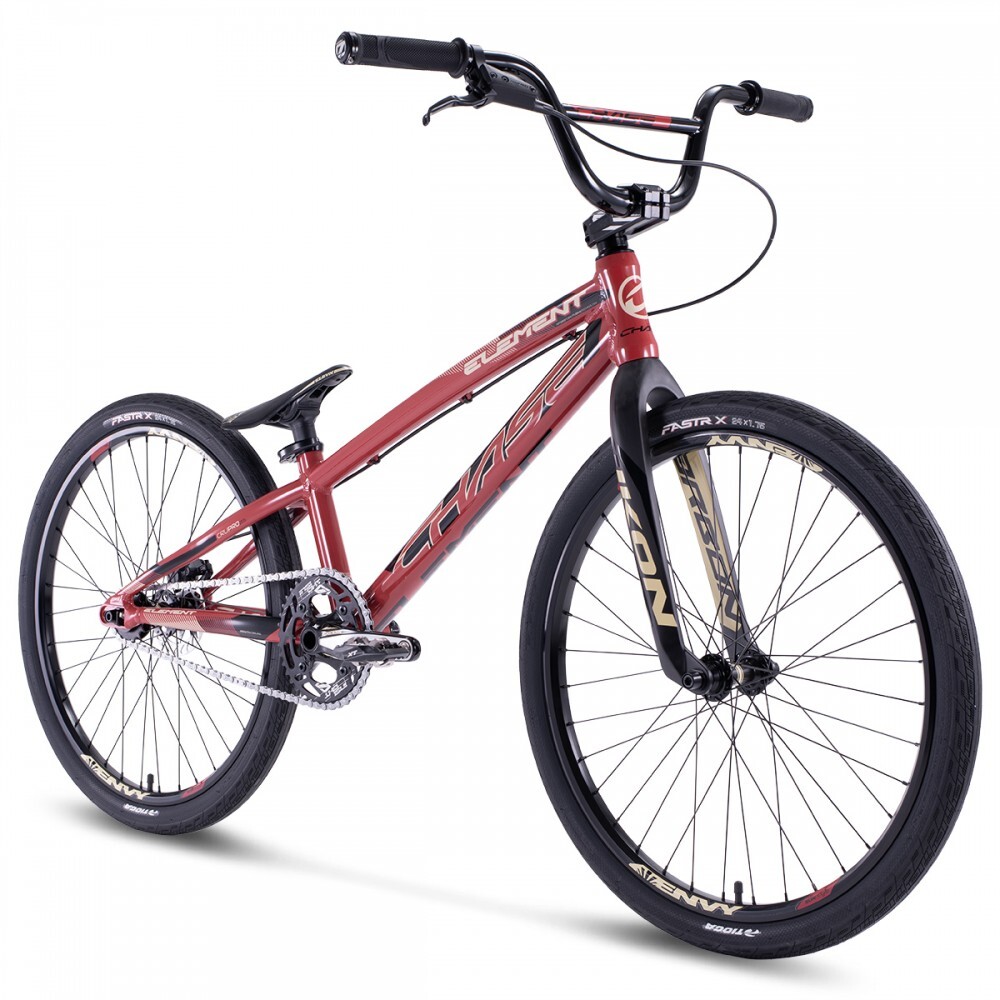

CHASE ELEMENT PRO-CRUISER

Chase has been pushing the envelope for the past 11 years with our complete bikes and the newest edition of the Element, Element 10 is the best we have ever offered.

FRAME: Chase Element Pro Cruiser 21.5e Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8", 20mm Drop Out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 50mm
HANDLEBAR: Chase Element 31.8mm 5.75"
CHAINRING: Insight 41T 4 Bolts BCD 104mm
CRANKSET: Excess LSP 180mm, Press Fit BB86
HUBS: Chase Element 3/8" Bolts, 36H Front, Chase Element 3/8" Cassette ISO Hub 36H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 18T cog
RIMS: Sun Ringlé Envy Rims 24×1.75", 36H, No Brake Surface
TIRES: Tioga Fastr X 24×1.75" Front & Rear
BRAKES: Tektro Hydraulic lever and caliper (Resin Pads), 120mm disc rotor, Lock Disc Adaptor
SEAT: Chase Aero seat post & clamp / Elevn PC Pivotal seat
PEDALS - Nylon Platform - Pictured with Shimano XT Pedals but this was for photo purposes only.

WEIGHT: 21.7 LBS / 9.85 KG WITH PEDALS
RIDER SIZE: 5′ 6,1″ – 6′ 0,8″ / 1M68 – 1M85

The Element 10 foundation is the new frame- an updated Disc brake specific 7005 T6 frame. The Element frame is built using the ultimate in Alloy Technology - Double & Tripple Butted tubing and Hydroformed & Tapered tubing. Frame features include an integrated chain tensioner / disc brake mounting system, Disc brake specific design, and a Press Fit BB86 Bottom Bracket. The Element frame uses the same geometry as our UCI World Champion and USA BMX Championship winning Chase ACT Carbon Fiber Frame and RSP race frames, all featuring the Aero Shaped seat tube.

The Element frame is built up with some of the best parts in BMX, including- IKON Pro Carbon 20mm Fork, Sun Envy Alloy Rims, Tioga Fastr Tires, KMC Chain, Disc ISO Rear Cassette hub with 72 points of engagement, 31.8 Handlebars & Stem, Excess LSP Cranks, Insight Chainring, Grips, and Hydraulic brakes.

#WinWithChase has been a guide whenever we design a new bike or frame, giving riders the best to help them win. We feel the new Element is an unfair advantage with the technology, race history, and experience we have built into it! All thats left is for you to get on the gate!

SPECIFICATIONS :

FRAME Chase Element Pro Cruiser 21.5" Top Tube 7005 T6 Alloy, Integrated Head Tube, 1-1/8", Close Drop Out
FORK Ikon Pro 24" Carbon, Alloy 1-1/8" Steer Tube, 20mm Drop Out with Adaptor 3/8" Axle, Alloy Top Cap
HEADSET Integrated IS 42/42 1-1/8", Sealed Bearing
HANDLEBAR Chase Element Cromo 5.75", Diameter 31.8mm Rise, 28.5" Wide, 10° Back Sweep & 2° Up Sweep
GRIPS Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM Chase Element 1-1/8" Steer Tube, Diameter 31.8mmmm, Length 50mm 6061 T6 Alloy CNC Laser Etched Logo
BB Press Fit 68/73mm Cartridge Bearings
CHAINRING Insight 41 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring
CRANK Excess LSP 2 Piece Crank 180mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts
PEDAL Nylon Platform Pedal 9/16"
CHAIN KMC Z1 Narrow 1/2"x3/32"
COG 18 Tooth
FRONT HUB Chase Element 3/8" Bolts, 36H, Sealed Bearing
REAR HUB Chase Element Pro ISO Hub, 36H, Sealed Bearing, 3/8" Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES Front 236mm, Rear 231mm, 14 Gauge, Steel
NIPPLES Brass 14Gx5/8"
RIMS Sun Rims Alloy Envy Front 36H 24"x1.75" No Brake Surface Schrader Valve
FRONT TIRE Tioga Fastr X 24"x1.75" 60 TPI Wire Bead
REAR TIRE Tioga Fastr X 24"x1.75" 60 TPI Wire Bead
TUBES 24"x1.5"-1.75" Schrader Valve
BRAKES Tektro HD-M280 Hydraulic, Resin Pads, 120mm Rotor, Lock Disc Adaptor
SADDLE Elevn PC Pivotal
SEAT POST Chase Aero Pivotal 27.2x260mm Alloy
SEAT CLAMP Chase Aero 27.2mm QR Alloy
CHAIN TENSIONER Integrated Built-In With New Lock Disc Adaptor



GEOMETRIES :

cadre

FRAME SIZE TT CS min LR AF SA HT SPL BBH WHEELS
Expert 20" - 508 mm 13.5" - 342.9 mm 1.5" - 38.1 mm 73° 70° 4.7" - 120 mm 9.2" - 236 mm 11" - 279.4 mm 20×1-3/8"
Pro 20.5" - 520.7 mm 14.25" - 362 mm 1.5" - 38.1 mm 74° 72,5° 4.7" - 120 mm 9.2" - 236 mm 11.5" - 292.1 mm 20×1.5"
Pro XL 21" - 533.4 mm 14.3" - 363.3 mm 1.5" - 38.1 mm 74° 72,5° 4.7" - 120 mm 9.2" - 236 mm 11.5" - 292.1 mm 20×1.75"
Pro XXL 21.5" - 546.1 mm 14.5" - 368.3 mm 1.5" - 38.1 mm 74° 72,5° 4.7" - 120 mm 9.2" - 236 mm 11.5" - 292.1 mm 20×1.75"
Pro XXXL 22.0" - 558.8 mm 14.5" - 368.3 mm 1.5" - 38.1 mm 74° 72,5° 4.7" - 120 mm 9.2" - 236 mm 11.5" - 292.1 mm 20×1.75"
Pro Cruiser 21.5" - 546.1 mm 15.25" - 387.3 mm 1.5" - 38.1 mm 73° 69,5° 4.7" - 120 mm 9.8" - 250 mm 12" - 304.8 mm 24×1.75"
Pro Cruiser + 22.0" - 558.8 mm 15.25" - 387.3 mm 1.5" - 38.1 mm 73° 69,5° 4.7" - 120 mm 9.8" - 250 mm 12" - 304.8 mm 24×1.75"

NOTE: Chase Element Pictured with Shimano XT Pedals but are for photo purposes only. Bikes come with Nylon Platform Pedals.

IMPORTANT NOTE: The washers supplied with the EXCESS crank set must be fitted between the pedal and the crank. No after-sales service will be accepted if the washers have not been fitted as of the 1st use.

SKU 65CB240309PRO24WINE
Brand Chase BMX
Shipping Weight 12.0000kg
Shipping Width 0.200m
Shipping Height 1.140m
Shipping Length 0.550m
