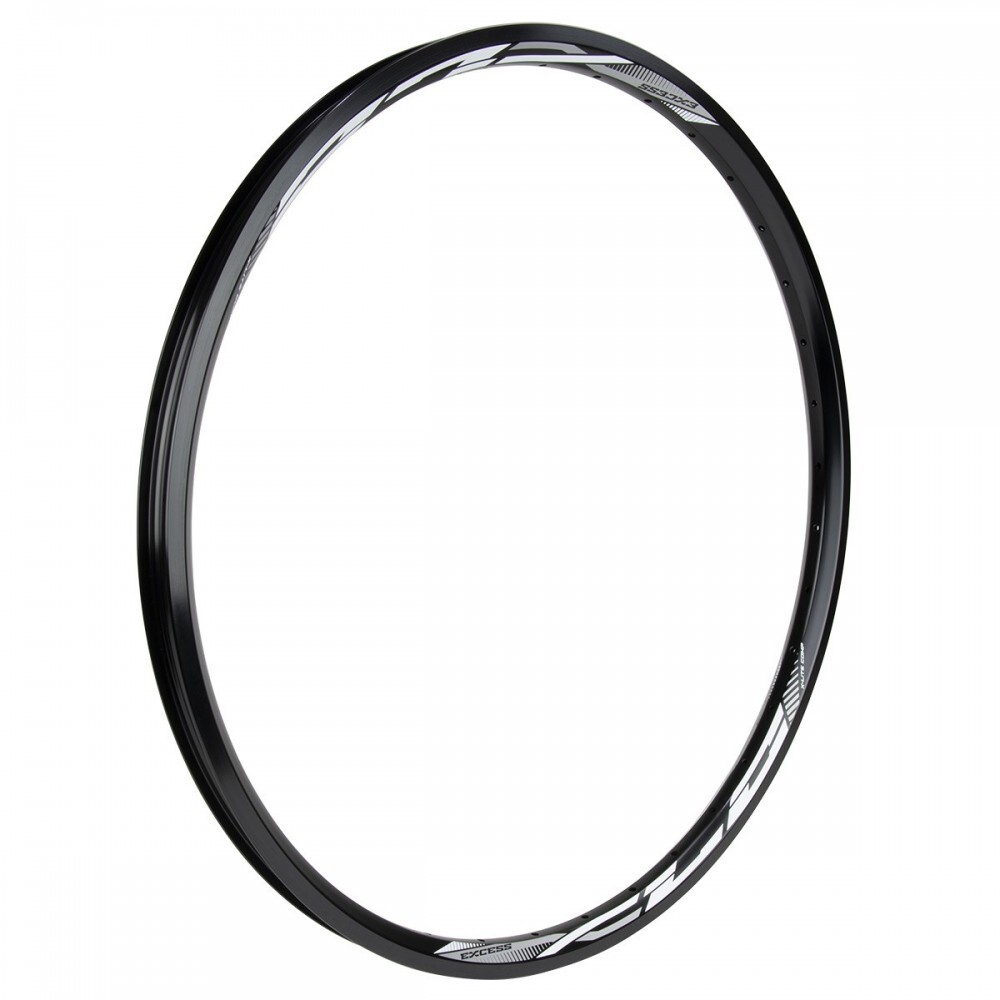

EXCESS XLC ALLOY RIM 507X28MM 36H WITH BRAKE SURFACE

Pro Lite/Pro alloy rims 24” 507x28mm (24x1.50" / 20x1.75").
Made in 6061 Aluminum with an anodized finish, EXCESS XLC rims are specially designed for BMX with 2 different aero rim profiles for the front or for the rear depending on the type of braking used.
In addition, they have angle nipples holes, for a more direct angle offering a more rigid shelving.

  • Double walled 6061 T6 Alloy rim with Optimized Internal Geometry for light weight and optional strength
  • Low Profile Aero
  • Machined Brake Track on Brake surface
  • Single process hi-polished, black anodized finish
  • Presta valve hole
  • Angled Nipples Holes

Weight : 388g

EXCESS XLC 507x28MM RIM SPECIFICATIONS
ERD: 24": 491mm
Height: 19mm
Internal Rim Width: 23.3mm
External Rim Width: 28mm
Spoke tension recommended <115KGF

Tubeless Ready System - Our rims feature a Bead Lock System, needed for the rim to be Tubeless Ready. With the installation of additional items needed you can get the rim ready for tubeless set up, along with the usage of a tubeless specific tire. With a tubeless set up, you can lighten up your wheels, saveing rotational weight, as well as have a sealant inside your tubeless ready tire to help automatically repair small punctures.
Additional items needed to convert to a Tubeless system include Special Valve, Sealant Rim Tape, and Liquid sealer.

V-Braking Compatible - Designed to be used as a rear rim when using a V-brake.

SKU 68RIMA0636BLKB
Brand EXCESS
Shipping Weight 0.4500kg
Shipping Width 0.550m
Shipping Height 0.020m
Shipping Length 0.550m
Shipping Cubic 0.006050000m3
